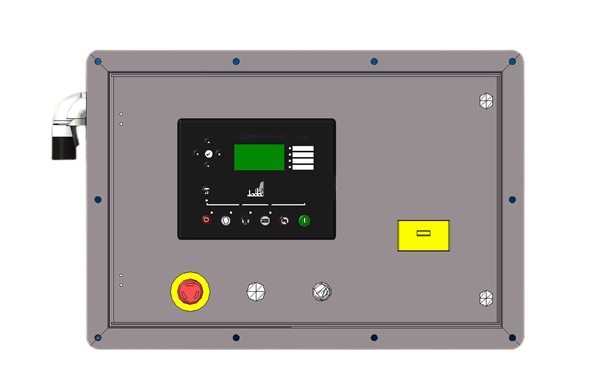

Backpack-style Control Panel

Utilizes the "SmartGen" series high-performance generator controllers. The SmartGen series is specifically designed for various types of diesel generator sets, fully considering the control and protection requirements of different generator types, making it suitable for control system upgrades. It can assist original generator manufacturers in developing and producing control systems. By applying the SmartGen series products, manufacturers can create differentiated competitive advantages based on market positioning, leading competitors and winning market share.

● Main Parameters

○ Cummins Generator Automation + RS485
○ Operating Voltage Range: DC (8-35)V
○ Dimensions (mm): 209*166*45
○ Installation Dimensions (mm): 186*141
○ Operating Temperature: (-25~70)℃
○ Weight: 0.56kg

● Key Features

○ Reliable design and stable debugging;

○ Professional engineers conduct debugging personally, with short debugging time and excellent results;

○ Safe wiring layout fully complies with electrical standards;

○ High compatibility, suitable for controlling various generator models and capacities;

○ Microprocessor-based, with large backlit LCD Chinese display and touch button operation;

○ Accurate measurement and display: real-time monitoring of generator and mains electrical parameters, water temperature, oil pressure, etc.;

○ Control and protection functions: automatic start/stop, load transfer, and alarm protection;

○ Parameter setting: allows users to modify parameters, which are stored in internal FLASH memory and retained during power loss;

○ Automatic air damper control (via programmable output);

○ Supports various temperature and pressure sensors with customizable parameters;

○ Real-time calendar, clock, and cumulative runtime functions;

○ Cumulative generator output energy display;

○ Multiple start success conditions available;

○ Built-in speed/frequency detection for precise determination of start success, rated operation, and overspeed status;

○ 99 sets of historical records can be cyclically saved and queried on-site;

○ Wide power supply range (8-35)VDC, adaptable to different starting battery voltage environments;
